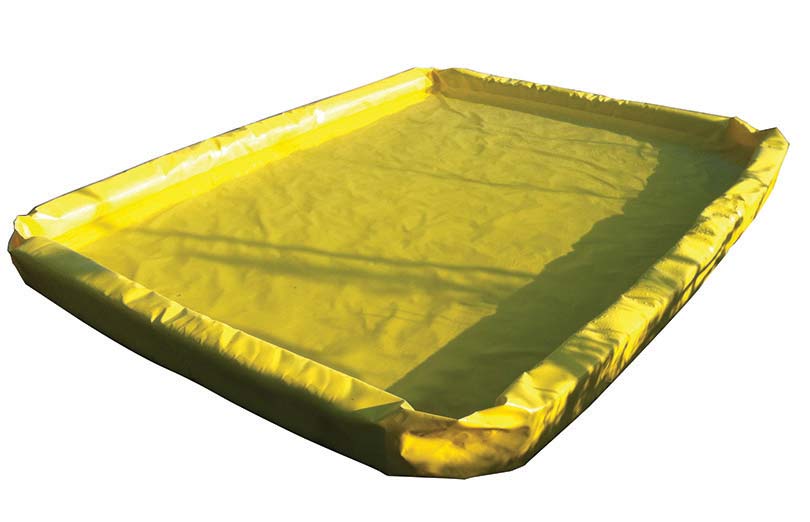

Foam Wall Berms - Eagle I
Husky® Foam Wall Berms are designed for long life and less maintenance. They are very simple to use and set up is minimal. There are cutouts on the bottom side of the berm in the corners and every 5 feet around the perimeter to accept the foam inserts. Foam inserts are 3" diameter by 5 feet long and are manually slid into the cutout pockets. Once inserted your berm is ready for use. There are separate storage bags for the berm and foam inserts. Contain minor drips and small capacity tanks with Husky® Low Profile Foam Berms!

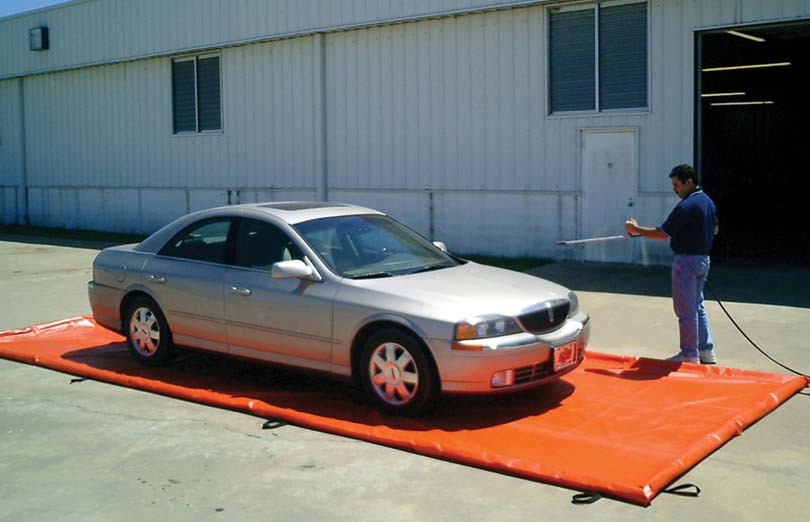

- Drive in / drive out without risking damage to foam walls
- Tread Pads available
- Can be manufactured to meet any size specifications or requirements
- Optional full enclosed or removable foam walls
- Ground Covers available
- Material Options: PVCs from 22 oz. – 30 oz., all XR materials, urethanes
- Standard wall size is 3", taller sizes available up to 12"
- High-quality foam end walls can be driven over repeatedly with no damage
- Maneuvering straps in corners and every 10 feet

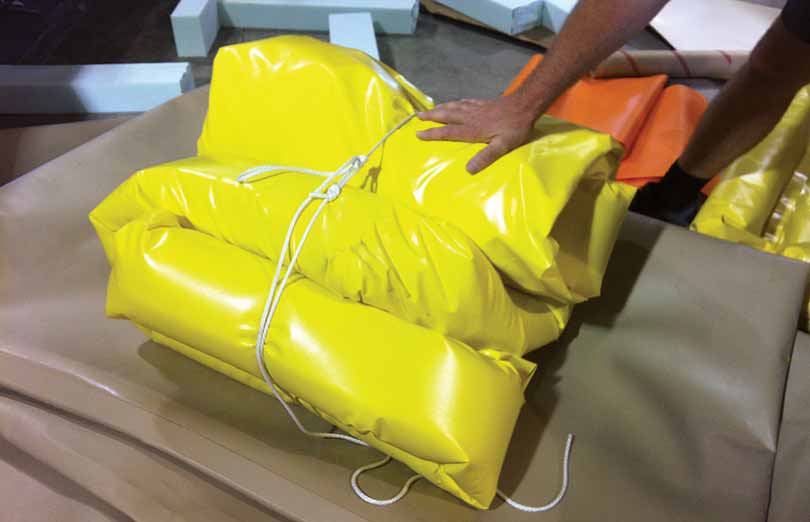

- Storage bags
3 Year Warranty on all Welds and Welded Seams
Husky® Portable Containment offers a 3-year warranty on environmental product welds and welded seams.
Quality is not just a word at Husky®, it is the foundation on which we build our business. We want you to know that when you buy a Husky® Portable Tank, you are purchasing a product that is built to last a lifetime. Husky® will repair or replace any tank if a seam or weld comes apart or breaks. You can feel secure and safe with your portable tanks. Put a Husky® on your team today!
Read the Husky® full product warranty for more information.
|Size||Folded Berm Dimensions||Berm Weight||Foam Weight||Shipping Dimensions||Shipping|
|10' x 15' x 3"||24" x 34" x 6"||58 lbs.||5 lbs.||40" x 60" x 16"||98 lbs.|
|10' x 20' x 3"||30" x 40" x 8"||75 lbs.||5 lbs.||40" x 60" x 18"||116 lbs.|
|10' x 25' x 3"||34" x 44" x 10"||92 lbs.||6 lbs.||40" x 60" x 18"||133 lbs.|
|12' x 30' x 3"||38" x 44" x 12"||124 lbs.||7 lbs.||40" x 60" x 24"||165 lbs.|
|12' x 40' x 3"||38" x 46" x 18"||166 lbs.||8 lbs.||40" x 60" x 30"||208 lbs.|
|12' x 50' x 3"||40" x 46" x 26"||205 lbs.||9 lbs.||40" x 60" x 38"||249 lbs.|
HEAVY DUTY SUPER BERM floor
Husky® patented "Super Berm" Floor is the most revolutionary super heavy-duty berm to be offered in the secondary containment market with high and heavy traffic at the forefront of the design. The Super Berm is a true drive-through model berm with a multi-layered floor that will stand up to extreme conditions.
Husky® Portable Containment continually strives to meet our customers' needs. If you have a custom product request we are here to meet your challenge and can design and build what you may require. We don't limit ourselves to "standard" products. With our vast associations in the manufacturing industry, we can locate any type of material, fitting, valve, etc. required for your order. Custom orders generally have a quick turnaround and we can expedite your order if it is required.
Husky® Tread Pads are accessories for drive-through berms. They give additional strength to the floor of your berm and protect it in traffic areas. They are positioned inside the berm where your vehicle's tires will be tracking on the berm.
Quick Fix Field Repair Kits
Husky® “Quick Fix” Field Repair Kits are designed for emergency field repairs and can immediately repair small holes, rips, or tears in vinyl or EXLON®. There is no gluing necessary—just peel and stick to the damaged area and keep your tank in the game.
Standard Field Repair Kits
Husky® “Standard” Field Repair Kits are the best solution to repair holes, rips, or tears in vinyl or EXLON®. Each kit comes complete with PVC cement, one pair of scissors, approximately 9 sq ft of PVC material, a seam roller, instructions, and a carrying pouch.
Husky® Ground Tarps go underneath your tank so that you can use your tank on all types of terrain.
Husky® manufacturers Secondary Containment Berms and Berm Liners to match all Husky® Bladder Tank sizes. If you have purchased a fuel or chemical Husky® Bladder Tank, you will most likely be required to have some type of secondary containment in case of a spill.
ENCLOSED FOAM WALL BERM INSTRUCTIONS (DOCX)
Learn how to set up and store a Husky® Foam Wall Berm.Download
Husky Firefighting Brochure 2021 (PDF)Download
Husky Environmental Brochure 2018 (PDF)Download
