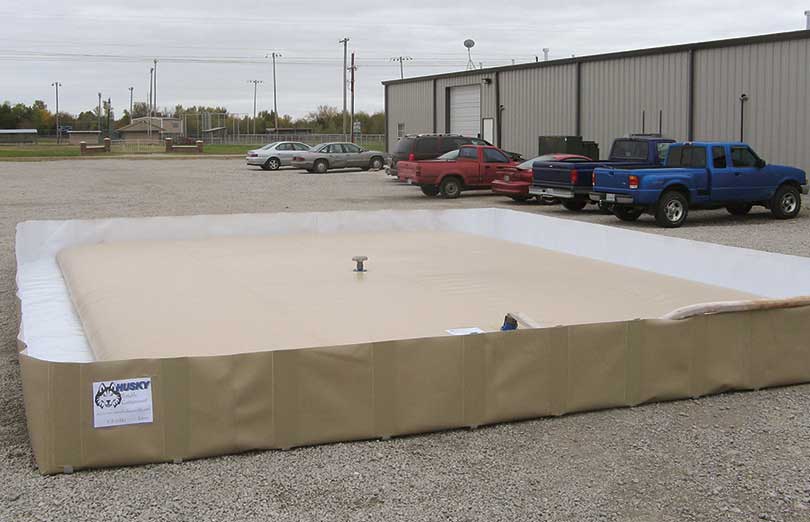

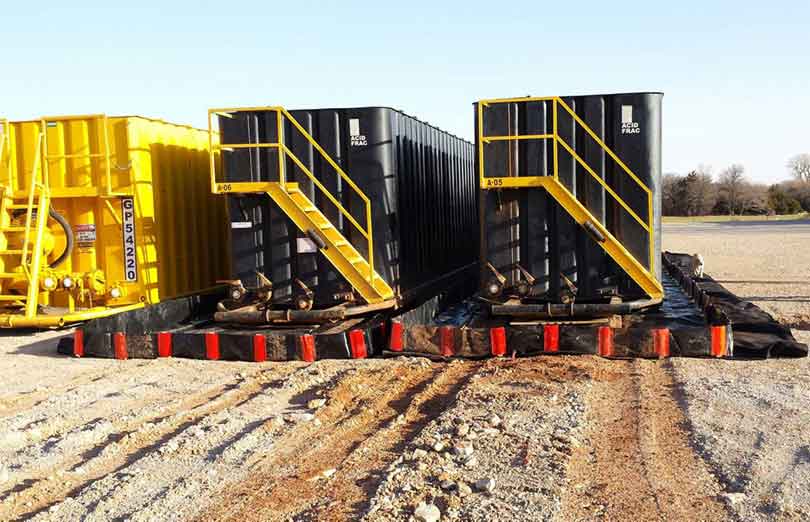

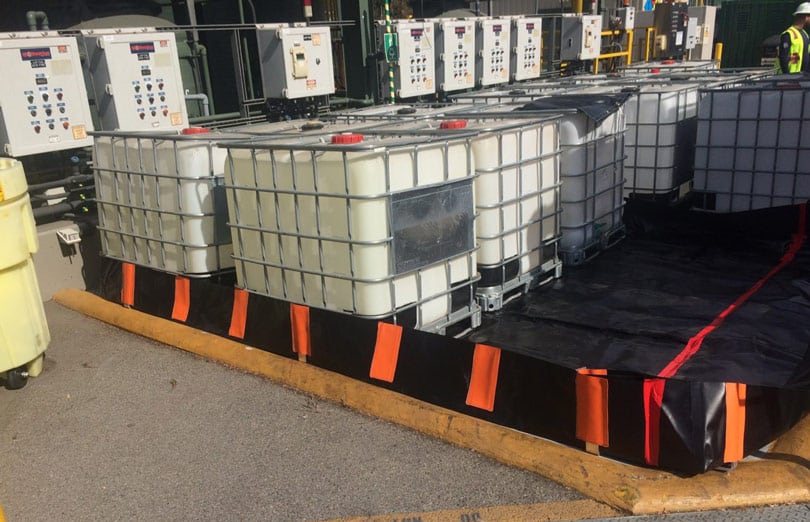

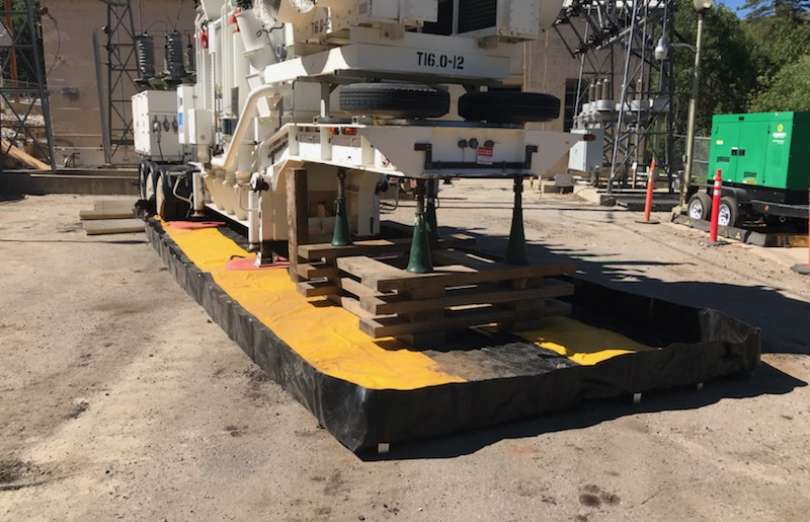

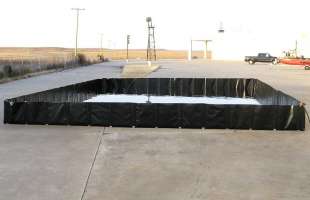

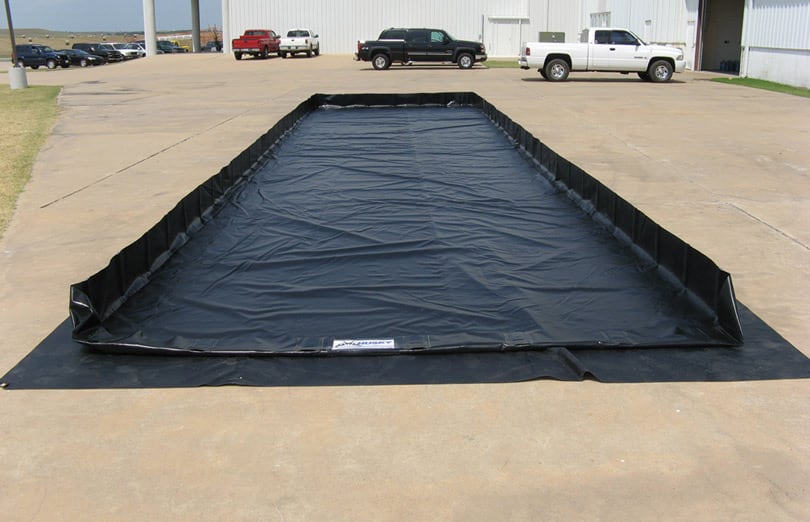

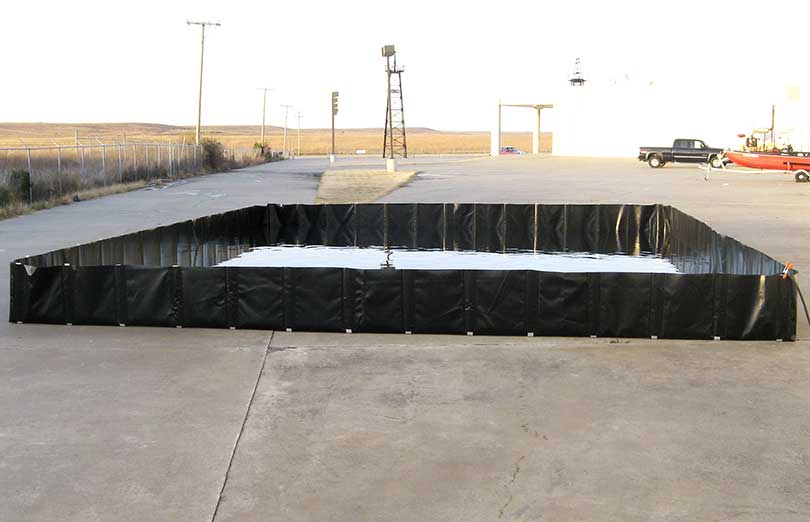

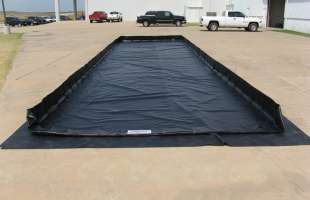

Heavy Duty Aluminum Angle Berms - Patriot Series

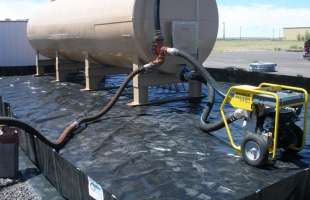

Husky® Aluminum Angle Berms are easy to use with minimal setup time. The benefit to Husky® Angle Berms is by having separate aluminum angle pieces the berm liner itself is lighter to handle. This means less manpower to handle the same size berm in one-piece construction. The angle brackets come in their own storage bag as well as the berm liner making transport much easier for a smaller crew. Two people can set up a 12' x 50' berm in less than 10 minutes. End wall tears down for ingress is one person less than one minute.
Features
Specs
Options
Accessories
Downloads
Features
- Material Options: PVCs from 22 oz. – 30 oz., All XR materials, urethanes
- Wall sizes up to 24"
- Aluminum angles are heavy duty 6061-T6 aircraft quality aluminum
- Sidewall pockets are approx. every 24" apart or less to accept the angles
- Husky® Angle Berms are tested and guaranteed
- Storage bags
3 Year Warranty on all Welds and Welded Seams
Husky® Portable Containment offers a 3-year warranty on environmental product welds and welded seams.
Quality is not just a word at Husky®, it is the foundation on which we build our business. We want you to know that when you buy a Husky® Portable Tank, you are purchasing a product that is built to last a lifetime. Husky® will repair or replace any tank if a seam or weld comes apart or breaks. You can feel secure and safe with your portable tanks. Put a Husky® on your team today!
Read the Husky® full product warranty for more information.
Specs
Standard Dimensions
| Size | Folded Dimensions | Berm Weight | Angle Brackets Weight | Shipping Dims | Shipping Weights |
|---|---|---|---|---|---|
| 10' x 10' x 1' | 22" x 28" x 6" | 37 lbs. | 39 lbs. | 25" x 9" x 35" | 81 lbs. (UPS) |
| 12' x 12' x 1' | 24" x 30" x 8" | 50 lbs. | 46 lbs. | 40" x 48" x 11" | 131 lbs. |
| 12' x 26' x 1' | 30" x 34" x 9" | 95 lbs. | 71 lbs. | 40" x 48" x 15" | 201 lbs. |
| 12' x 36' x 1' | 34" x 36" x 12" | 124 lbs. | 89 lbs. | 40" x 48" x 18" | 248 lbs. |
| 12' x 50' x 1' | 40" x 40" x 18" | 173 lbs. | 113 lbs. | 40" x 48" x 22" | 321 lbs. |
| 14' x 54' x 1' | 40" x 46" x 24" | 210 lbs. | 124 lbs. | 40" x 48" x 30" | 369 lbs. |
| 15' x 50' x 1' | 40" x 46" x 24" | 210 lbs. | 117 lbs. | 40" x 48" x 30" | 369 lbs. |
| 15' x 66' x 1' | 40" x 47" x 36" | 268 lbs. | 149 lbs. | 40" x 48" x 42" | 452 lbs. |
Options
-
HEAVY DUTY SUPER BERM floor
Husky® patented "Super Berm" Floor is the most revolutionary super heavy-duty berm to be offered in the secondary containment market with high and heavy traffic at the forefront of the design. The Super Berm is a true drive-through model berm with a multi-layered floor that will stand up to extreme conditions.
-
Customize Product
Husky® Portable Containment continually strives to meet our customers' needs. If you have a custom product request we are here to meet your challenge and can design and build what you may require. We don't limit ourselves to "standard" products. With our vast associations in the manufacturing industry, we can locate any type of material, fitting, valve, etc. required for your order. Custom orders generally have a quick turnaround and we can expedite your order if it is required.
Accessories
-
Tread Pads

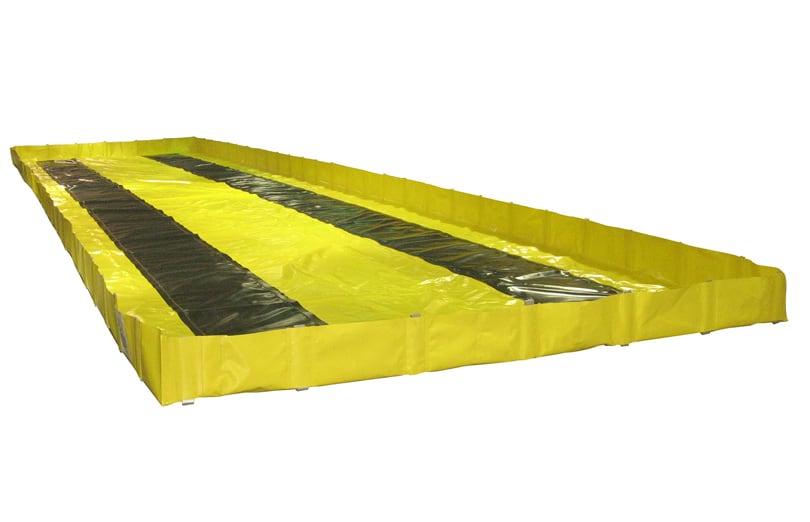

Husky® Tread Pads are accessories for drive-through berms. They give additional strength to the floor of your berm and protect it in traffic areas. They are positioned inside the berm where your vehicle's tires will be tracking on the berm.
-
Quick Fix Field Repair Kits
Husky® “Quick Fix” Field Repair Kits are designed for emergency field repairs and can immediately repair small holes, rips, or tears in vinyl or EXLON®. There is no gluing necessary — just peel and stick to the damaged area and keep your tank in the game.
-
Standard Field Repair Kits
Husky® “Standard” Field Repair Kits are the best solution to repair holes, rips, or tears in vinyl or EXLON®. Each kit comes complete with PVC cement, one pair of scissors, approximately 9 sq ft of PVC material, a seam roller, instructions, and a carrying pouch.
-
Ground Tarp
Husky® Ground Tarps go underneath your tank so that you can use your tank on all types of terrain.
-
Berm Liners
Husky® manufacturers Secondary Containment Berms and Berm Liners to match all Husky® Bladder Tank sizes. If you have purchased a fuel or chemical Husky® Bladder Tank, you will most likely be required to have some type of secondary containment in case of a spill.
Downloads
-
ALUMINUM ANGLE BERM INSTRUCTIONS (DOCX)
Learn how to set up and use your Husky® Aluminum Angle Berm
Download -
Husky Firefighting Brochure 2021 (PDF)
Download
